Fluke ESA615
Medical test and inspection equipment
Fluke ESA615
The electrical safety tester with integrated automation!
Art. No. 546-4132135
The portable, lightweight ESA615 from Fluke Biomedical can be used in confined spaces and offers the functions of a simulator, multimeter and electrical safety tester in a single meter.
Product advantages
- All-rounder for simple and comprehensive analyses
- All-in-one safety analyzer and ECG simulator
- Suitable for quick and easy, automated tests
- Portable, ergonomic design with integrated handle and folding foot
- Mobile and easy to transport for use on site and in medical facilities
Main features
- Integrated automation with automated test sequences for fast testing and easy compliance with the most important general standards for electrical safety (ANSI/AAMI ES1 (NFPA-99), IEC62353 (VDE751), IEC60601-1 (2nd and 3rd editions and AS/NZS 3551)
- Interface adapted to human factors for efficient testing
- ECG waveform and 2-channel measurements combine the functionality of a simulator, multimeter and safety tester in a single test device
- Currents up to 20 A at 120 V
- Five connection sockets for applied parts and simple ECG plug-in connection; optional expansion box for testing ECGs with up to 12 leads
- Simple data entry via barcode scanner, external keyboard or integrated keyboard
- Wireless communication plus removable memory card for fast and convenient data storage and exchange
- Replaceable mains fuses keep your device in operation and away from the workshop
- User-defined language selection for English, French, German, Spanish, Italian and Portuguese
- Large, easy-to-read display with adjustable contrast
- Optional Ansur automation software with fully integrated medical device testing, including electrical safety, visual inspection and other performance parameters, for fully digital data management. Connect other Ansur automated test equipment for a harmonized workflow and consistent reporting
- Rigorous testing for rugged field applications, with additional CE and CSA certification alongside proven Fluke quality
The ESA615 Electrical Safety Analyzer combines quick and easy automated testing in a portable tester for professionals who test the electrical safety of medical equipment both in the field and in facilities. Whether simple testing or comprehensive analysis, the ESA 615 can do both. This versatile device performs all primary electrical safety tests, including line voltage, grounding resistance (protective earthing), insulation resistance, equipment current and patient load tests.
In addition, the ESA615 features ECG simulation and point-to-point voltage, leakage current and resistance testing. It is versatile for the global electrical safety standards of your choice.
- ANSI/AAMI ES1 (NFPA-99)
- IEC62353 (VDE751)
- IEC60601-1 (2nd and 3rd edition) and
- AS/NZS 3551
The ESA615 is a complete solution with a multimeter, safety tester and ECG simulator in one test device.
Videos
Request now
Other electrical safety testers:
Fluke ESA715 & ESA712
Medical test and inspection equipment
NEW: Fluke ESA 715 & ESA 712
Electrical safety analyzer
ESA715, Art. No. 546-5577772
ESA712, Art. No. 546-6045908
The new ESA715 and ESA712 electrical safety analzyer from Fluke Biomedical offer groundbreaking, unparalleled versatility and precision.
The ESA715 revolutionizes the field of electrical safety testing with its innovative approach to automated testing, while the ESA712, a versatile precision device for manual electrical safety testing, is the ideal companion for medical professionals.
These portable devices combine the functions of a safety analysis tool and a patient simulator in one device, redefining the concept of efficiency. They allow not only basic troubleshooting but also comprehensive analysis of medical devices that meet global electrical safety standards.
Product advantages
- Small, ergonomic analyzer with handle and integrated rechargeable battery
- Intuitive 5" color touch screen
- Storage space for over 10,000 measurements
- ECG and respiration simulation
- Compatible with OneQA software and wireless communication (ESA715 only)
- Wireless functions for performing test procedures in the field and automatic synchronization of results (ESA715 only)
Main features
These new testers offer ECG waveform testing as well as dual-channel measurements, combining the functionality of a safety tester in a single tester. They allow easy data entry via the barcode scanner, external keyboard or on-screen keyboard. Replaceable mains fuses ensure that the device remains stable in use.
10 connections for application parts (ECG and banana plugs) with innovative LED light guidance for correct application
The devices are tested for rugged field applications and guarantee long-term reliability thanks to Fluke quality features.
ESA712
- Compliance with electrical safety standards NFPA 99 / AAMI ES1, AS/NZS 3551, IEC 62353 and parts of EN 50678 / EN 50699 and IEC 60601-1
ESA715
- On-board automation with automated test sequences for compliance with the most important electrical safety standards NFPA 99 / AAMI ES1, AS/NZS 3551, IEC 62353 and parts of EN 50678 / EN 50699, and IEC 60601-1
- Possibility to upload images, instructions and texts
The insulation resistance test is possible with 50V, 100V, 250V and 500V – the devices are CE certified.
Videos
Request now
Other electrical safety testers:
ECG adapter box EAB11
Medical test and inspection equipment
ECG adapter box EAB11
Check the ECG leakage currents for suction electrodes
Art. No. 546-53.150
The EAB 11 adapter box from Fluke Biomedical is designed for quick and easy testing of leakage currents in ECG suction electrode systems.
Product advantages
- Pocket-sized adapter box for connecting up to 10 ECG suction electrodes
- Very easy handling
- No maintenance or calibration required
Main features
- Numerically coded connections analogous to the patient application sockets of all electrical safety testers such as the ESA620 for measuring patient leakage currents
- Universal 4 mm banana jacks
- Adapter plates made of V2A stainless steel, polished
- Adapter for the use of patient simulators with ECG suction electrode systems
- Plastic housing (D x W x H = 191 x 135 x 45 mm, weight: approx. 250 g)
The ECG suction electrodes are simply placed on the V2A plates and the patient leads on the upper side of the EAB 11 are connected to the numerically coded sockets of the safety tester. The attached suction electrodes can be fixed in place with the Velcro grid supplied.
The leakage current measurements can now be carried out without any problems.
The EAB 11 also has a flange-mounted precision manometer with which the vacuum of the suction electrodes can be measured.
Request now
Fluke PS410
Medical test and inspection equipment
Fluke PS410
Patient simulator
Art. No. 546-2631276
The powerful PS410 Cardiac and Arrhythmia Simulator from Fluke Biomedical is designed for testing patient monitors. This portable device simulates a full range of heart rhythms and a variety of ECG conditions. It includes pacemaker simulation, 35 selected arrhythmias and normal sinus rhythms for adults and children.
Product advantages
- Compact, lightweight, pocket-sized simulation device
- Simple operation via the top control panel
- Battery operated
Main features
- 12-lead electrocardiogram
- Normal sinus rhythms for adults and children
- 35 arrhythmia selection options
- Electrocardiogram in power waveforms
- ST segment levels
- Pacemaker simulation
- Electrocardiogram artifacts
The patient simulator not only offers a wide range of tests but also high product quality and accuracy. With intuitive hotkeys for the most frequently used settings, this simulator is characterized by a high level of user-friendliness. In addition, all functions can be selected directly via the menu.
Request now
Other patient monitor simulators:

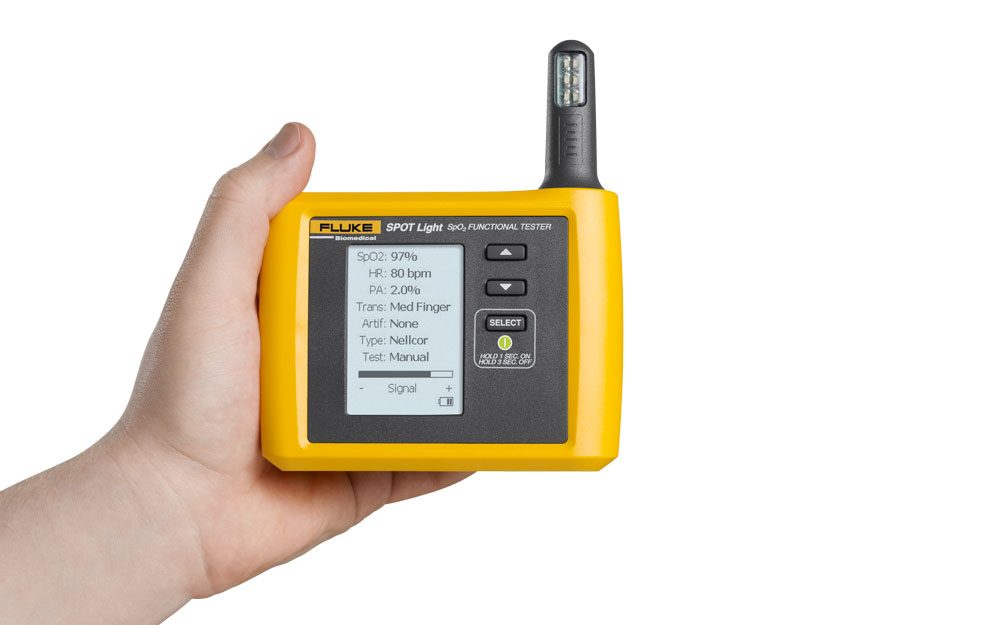

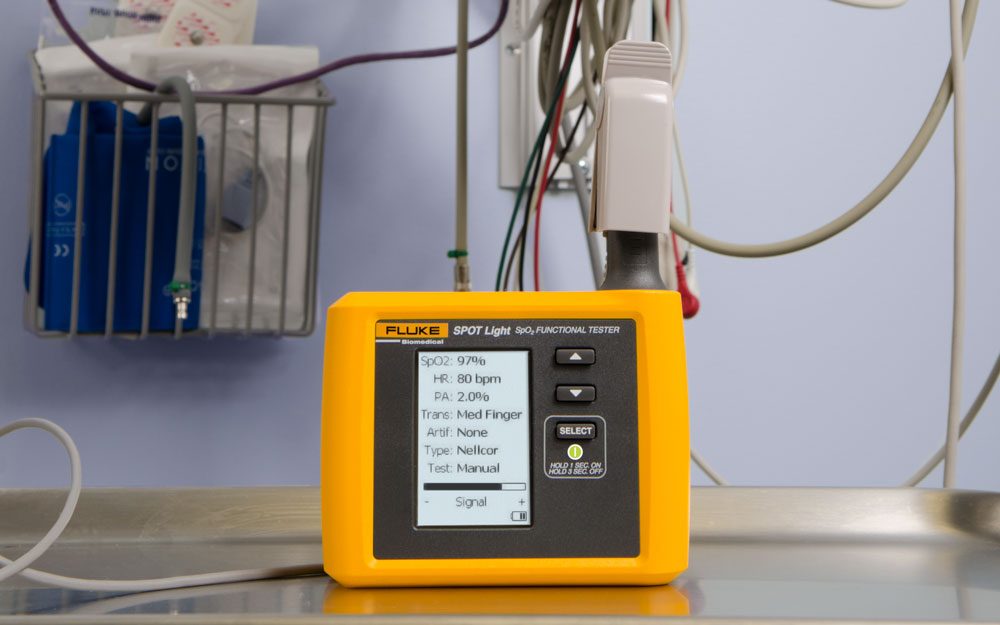

Fluke ProSim SPOT Light
Medical test and inspection equipment
Fluke ProSim SPOT Light
SpO2 function tester
Art. No.546-4142735
The ProSim SPOT Light pulse oximeter tester from Fluke Biomedical is a lightweight and easy-to-use SpO2 function tester. Preset programs test any combination of saturation, heart rate, perfusion, transmission, artifact noise and R-curve in 15 seconds or less.
Product advantages
- handy, ergonomic design
- flexible test device and with three customized presets
- Long-lasting, replaceable battery for mains-independent operation
Main features
- Small, portable and lightweight
- Large, easy-to-read LCD display
- Rechargeable battery lasts at least 10 hours
- Signal strength display
- SpO2 saturation: 70 %, 75 %, 80 %, 85 %, 90 %, 95 %, 97 %, 98 %, 99 % and 100 %
- Heart rate: 30, 40, 60, 65, 80, 100, 120, 140, 150, 180 and 240 bpm
- Perfusion: 0.2 %, 2 % and 10 %
- Transmission: dark, normal and light
- Artifacts: Breathing and ambient light
- R-curves: Nonin, Masimo, Nellcor, Nihon Kohden, Mindray, GE, Philips, BCI
Videos
Request now
Other patient monitor simulators:

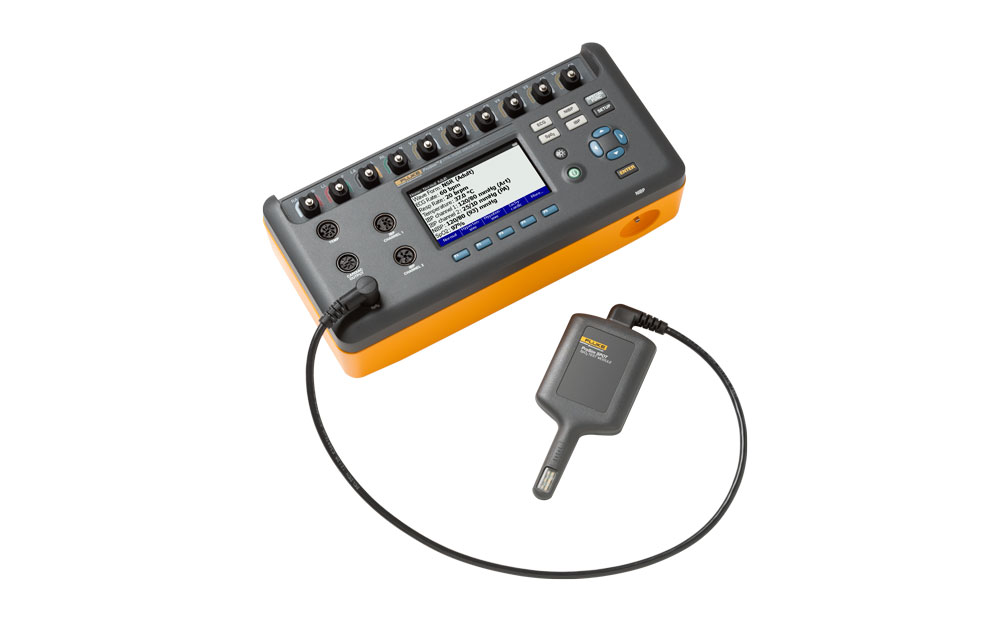

Fluke ProSim 6/8
Medical test and inspection equipment
Fluke ProSim 6/8
Vital sign simulator
Art. No. 546-3979411 (ProSim 8)
Art. No. 546-3985658 (SpO2 module)
Fluke Biomedical’s ProSim 6/8 8-in-1 vital signs simulator enables comprehensive and rapid testing of the entire patient monitor inventory as part of preventive maintenance.
Product advantages
- Leading performance in vital sign simulation
- Preventive maintenance tests can be performed in less than five minutes, reducing the average test time by up to 88%
- Ideal for development engineers who require a physiological signal output
Main features
The multifunction simulator, which only takes a few minutes to test a device, tests
- ECG (including fetal ECG and arrhythmias),
- Breathing
- Temperature
- IBD
- Cardiac output
- NIBD and
- SpO2
and can simulate rainbow curves with several wavelengths.
With the special ECG connections for secure cable connections, physiologically synchronized pulses in all parameters as well as customizable patient presets and automatic sequences, the ProSim 6/8 patient simulator enables particularly quick and easy complete testing of monitors.
Request now
Other patient monitor simulators:

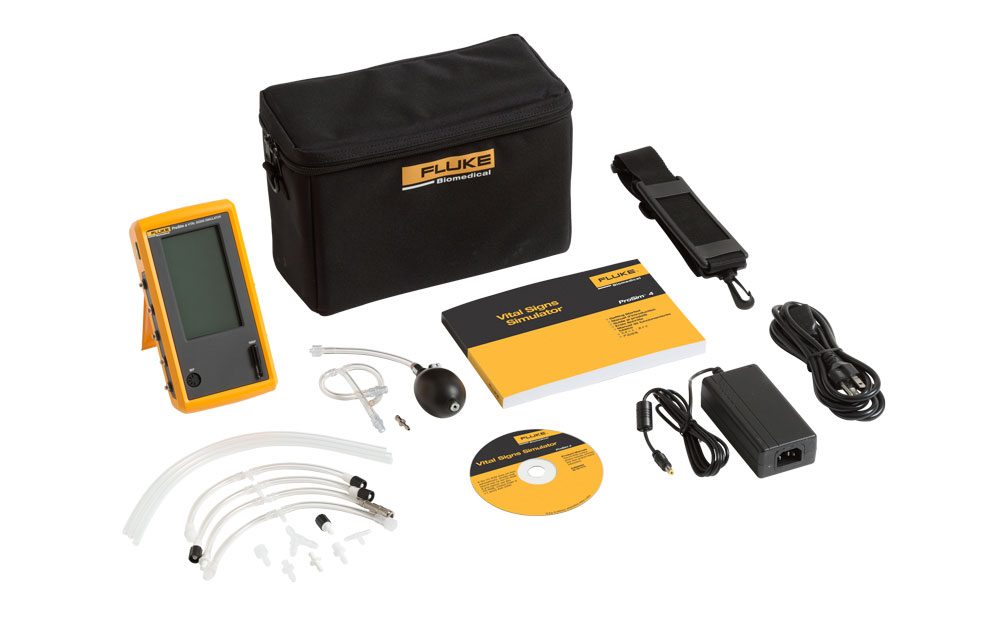

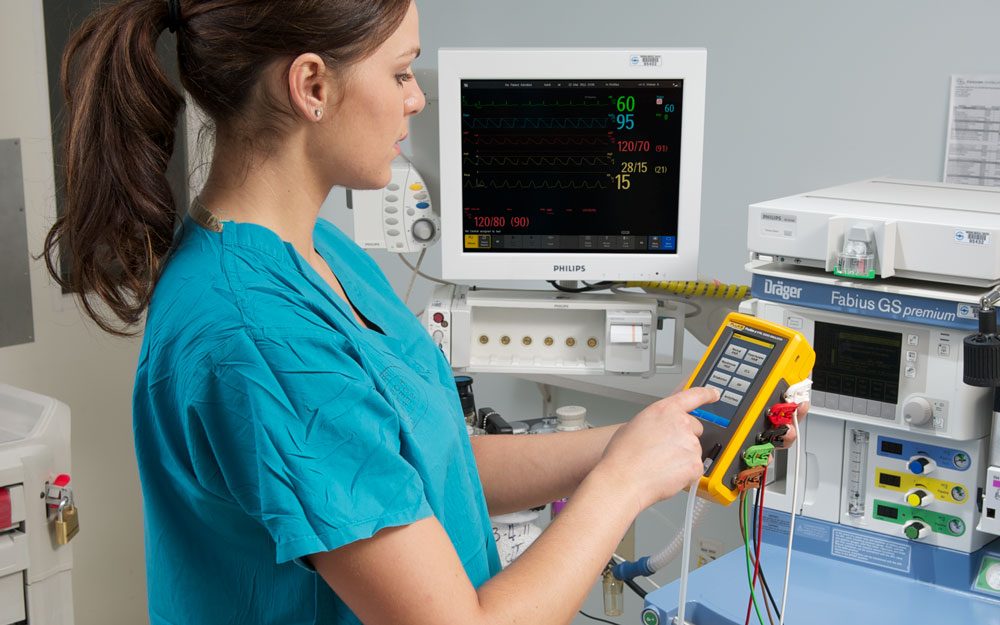

Fluke ProSim 4
Medical test and inspection equipment
Fluke ProSim 4
Function tester for vital signs
Art. No. 546-3985163
Fluke Biomedical’s ProSim 4 is a vital signs simulator that uses advanced touchscreen technology to quickly check and troubleshoot patient monitors.
Product advantages
- Handy, portable device
- Permanently connected EGK connections for safe electrode connection
- Perfectly suited for specialists on call
Main features
With the Pro Sim 4, the user can check patient monitors in the shortest possible time, as well as
- 12-lead ECG
- Breathing
- IBP and
- NIBP
simulate.
Thanks to the special ECG connections, this is the perfect simulator for testing monitor systems.
In combination with the ProSim SPOT light, the ProSim4 is an excellent addition for testing patient monitors!
Videos
Request now
Other patient monitor simulators:
Fluke ProSim 2/3
Medical test and inspection equipment
Fluke ProSim 2/3
Medical test and inspection equipment
Art. No. 546-4318341 (ProSim 2)
Art. No. 546-4307790 (ProSim 3)
Fluke Biomedical’s ProSim 2 and ProSim 3 patient simulators are the perfect solution for vital sign simulation for troubleshooting in the field or for testing on the go.
Product advantages
- Perfect, portable solution for vital sign simulation
- High quality
- Intuitive to use
Main features
- ECG Pacemaker arrhythmia and performance tests
- Respiration, invasive blood pressure measurement
- Temperature
- Cardiac output (ProSim-3 only)
- Fetal/maternal (ProSim-3 only)
Videos
Request now
Other patient monitor simulators:
Fluke INCU™ II
Medical test and inspection equipment
Fluke INCU™ II
Analyzer for incubators / radiant heaters
Art. No. 546-4722635 (no-wireless)
Art. No. 546-4722620 (wireless)
Fluke Biomedical’s INCU II analyzer ensures maximum infant safety by regularly checking incubators and radiant warmers as part of preventive maintenance.
Product advantages
- All-in-one incubator/thermal radiation tester
- Simplified tests and automated, personalized test sequences
- Lightweight and compact design (less than 5kg)
Main features
- Enables the simultaneous measurement of humidity, air flow, sound and temperature at six different points
- Wireless functionality supports fast and convenient download of test results and data
- Simplified test setup with color-coded temperature probes in the color of the input connections
- Pass/fail indication and real-time result display on large LCD display
- Complies with all relevant global standards, including IEC 60601-2-19, IEC 60601-2-20 and IEC 60601-2-21
The INCU II is intuitive to use and enables the simultaneous measurement of temperature, airflow, sound and humidity. Test results and parameters can be read in real time on a large LCD display or transmitted wirelessly to a computer.
With a rechargeable battery, the INCU II can remain in the incubator for up to 24 hours without compromising the integrity of the test environment.
Fluke INCU II for incubators/radiant warmers simplifies testing and ensures that infant incubators, transport incubators and radiant warmers meet the performance and safety requirements of all relevant global standards (IEC 60601-2-19, IEC 60601-2-20, IEC 60601-2-21).
Videos
Request now
Fluke IDA-5
Medical test and inspection equipment
Fluke IDA-5
1-4 channel infusion test device
Art. No. 546-4349396 (1-channel)
Art. No. 546-4349482 (2-channel)
Art. No. 546-4349591 (4-channel)
Fluke Biomedical’s IDA-5 is based on advanced measurement technology trusted by biomedical experts for over 20 years. The IDA-5 is a fully functional device for measuring instantaneous, average, occlusion and double flow rates according to IEC60601-2-24.
Product advantages
- Multi-channel infusion device analyzer that can test up to 4 infusion pumps simultaneously
- Integrated automation for creating user-defined test templates in accordance with IEC60601-2-24
- Fast, standardized testing of infusion pump devices
Main features
- User-defined test templates for quick and standardized tests
- Compatible with practically all infusion devices
- Snapshots of flow and pressure in real time for immediate detection of problems
- Instantaneous and average flow measurement of up to 1500 ml/h
- Occlusion pressure measurements up to 45 psi
- Single and double flow-through tests (piggyback tests) and PCA tests
- To maximize test accuracy, the device only starts the test when liquid is present
- Automatic termination of flow measurement based on time, volume or both – user adjustable
- Convenient and easy data entry via plug-and-play, USB-compatible keyboard or barcode scanner
- Integrated memory for saving the test results for printing or downloading to the computer
- Optional automation software for complete integration of the device test, including electrical safety
- Visual inspection and other performance parameters for complete digital data management
The IDA-5 is based on advanced measurement technology trusted by biomedical experts for more than 20 years. It is a fully functional device that measures instantaneous, average, occlusion and double flow rates based on IEC60601-2-24.
Videos
Request now
